- Material: Alloy steel
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
- NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
- OIML MAA C4, Y=15 000 certified from 500kg-2.5t
- OIML C3 certified from 3t-10t
- Rated Capacities: 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5lb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb / 100kg, 200kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t
- CE, RoHS and Ex certified
LOAD CELLS, SINGLE-ENDED BEAM

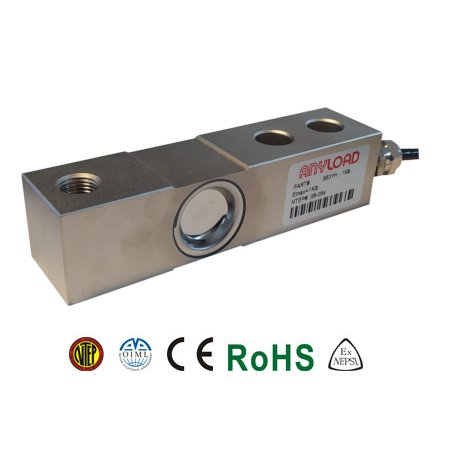

563YH Single-Ended-Beam Load Cell
$1.00
Alloy steel, NTEP, 3mV/V output, IP67, 4wires+shield 6mts.
Capacities: 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5lb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb / 100kg, 200kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t
| Load Capacity | 1 t, 1.5 t, 10 t, 10,000 lb, 100 kg, 100 lb, 1000 lb, 15,000 lb, 1500 lb, 2 t, 2.5 t, 20 t, 20,000 lb, 200 kg, 2000 lb, 250 lb, 2500 lb, 3 t, 4000 lb, 5 t, 500 kg, 500 lb, 5000 lb, 750 kg, LE2500 lb, SE5000 lb |
|---|
Related products
-
563YS Single-Ended-Beam Load Cell
LOAD CELLS $1.00 Select options This product has multiple variants. The options may be chosen on the product page -

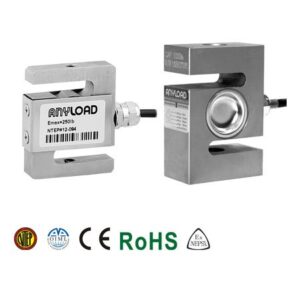

101NH S-Beam Load Cell (Copy)
LOAD CELLS $88.00 – $384.00 Select options This product has multiple variants. The options may be chosen on the product page -

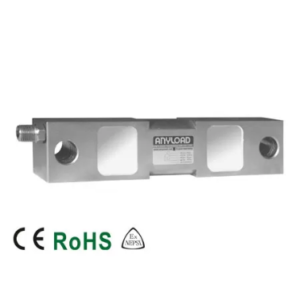

102EH Double-Endded-Beam Load Cell
