- Material: Alloy steel
- Rated Capacities: 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125Klb
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP67
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125Klb
- OIML MAA C4, Y=15 000 certified from 11t-55t
- CE, RoHS and Ex certified
- Lightning Protection Version (75Klb)
DOUBLE-ENDED BEAM, LOAD CELLS

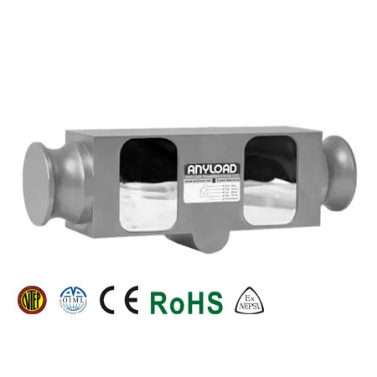

102TH Double-Endded-Beam Load Cell
$1.00
Alloy steel, 3mV / V output, IP67
Capacities: 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125Klb
| Load Capacity | 100,000 lb, 125,000 lb, 25000 lb, 40,000 lb, 50,000 lb, 60,000 lb, 75,000 lb, SE50000lb, SE60,000 lb, SE75000lb |
|---|
