- Material: Alloy steel
- Rated Capacities: 50Klb, 65Klb, 100Klb, 125Klb, 10t, 15t
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-125Klb
- OIML MAA C4, Y=15 000 certified from 11t-55t
- CE, RoHS and Ex certified
DOUBLE-ENDED BEAM, LOAD CELLS

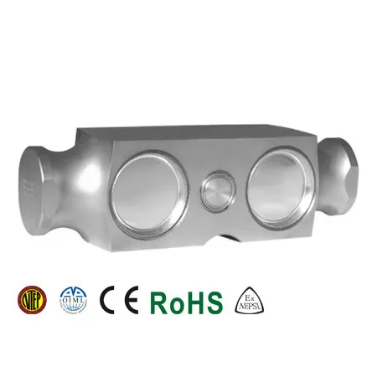

102RH Double-Endded-Beam Load Cell
$1.00
Alloy steel, 3mV / V output, IP67; 4-wire cable + shield 12m
Capacities: 50Klb, 65Klb, 100Klb, 125Klb, 10t, 15t
| Load Capacity | 10 t, 10,000 lb, 125,000 lb, 15 t, 50,000 lb, 65,000lb |
|---|
