- Material: Alloy steel
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 20Klb-120Klb
- OIML MAA C4, Y=15 000 certified from 10t-50t
- Rated Capacities: 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb
- CE, RoHS and Ex certified
DOUBLE-ENDED BEAM, LOAD CELLS

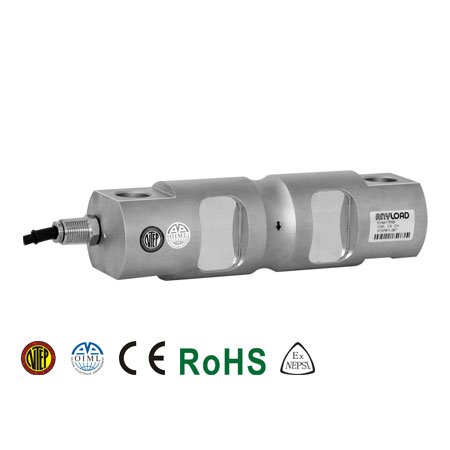

102DH Double-Ended-Beam Load Cell
$1.00
Alloy steel, NTEP, 3mV/V output, IP67, 4wires+shield 6mts.
Capacities: 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb
| Load Capacity | 10,000 lb, 100,000 lb, 150,000 lb, 20,000 lb, 200,000 lb, 30,000 lb, 40,000 lb, 50,000 lb, 5000 lb, 60,000 lb, 75,000 lb |
|---|
Related products
-
563YS Single-Ended-Beam Load Cell
LOAD CELLS $1.00 Select options This product has multiple variants. The options may be chosen on the product page -

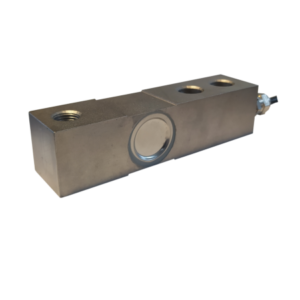

KSBA Single-Ended-Beam Load Cell
