- Material: Alloy steel
- Full Scale Output: 3mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
- NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
- OIML MAA C3, Y=17 000 certified from 200kg-1.5t
- OIML MAA C4.5, Y=14 000 certified from 2t-10t
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
- CE, RoHS and Ex certified
LOAD CELLS, S-TYPE

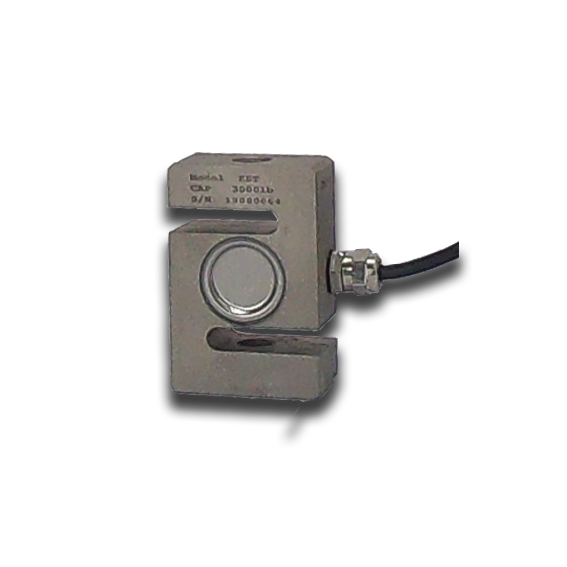

101NH S-Beam Load Cell (Copy)
$88.00 – $384.00
Alloy steel, C3, 3mV/V output, IP67, 4wires+shield 6mts.
| Weight | N/A |
|---|---|
| Load Capacity | 10,000 lb, 100 lb, 1000 lb, 15,000 lb, 1500 lb, 20,000 lb, 200 lb, 2000 lb, 250 lb, 2500 lb, 3000 lb, 50 lb, 500 lb, 5000 lb, 750 lb |
Related products
-
563YH Single-Ended-Beam Load Cell
LOAD CELLS $1.00 Select options This product has multiple variants. The options may be chosen on the product page -
102EH Double-Endded-Beam Load Cell
DOUBLE-ENDED BEAM $1.00 Select options This product has multiple variants. The options may be chosen on the product page -

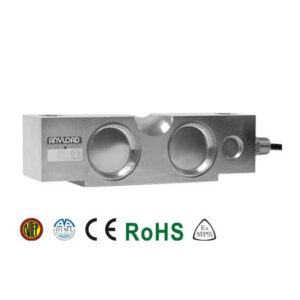

102BS-YZ Double-Ended-Beam Load Cell
