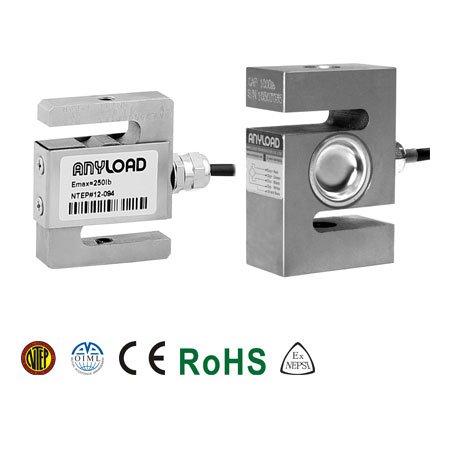

101NH S-Beam Load Cell

$1.00

Alloy steel, C3, 3mV/V output, IP67, 4wires+shield 6mts.

Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb





SKU: N/A Categories: ,
    • Material: Alloy steel
    • Full Scale Output: 3mV/V ± 1%
    • Safe Overload: 150%
    • Breaking Overload: 300%
    • IP Rating: IP67
    • NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
    • NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
    • OIML MAA C3, Y=17 000 certified from 200kg-1.5t
    • OIML MAA C4.5, Y=14 000 certified from 2t-10t
    • Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
    • CE, RoHS and Ex certified



Load Capacity

10,000 lb, 100 lb, 1000 lb, 15,000 lb, 1500 lb, 15kg, 20,000 lb, 200 lb, 2000 lb, 250 lb, 2500 lb, 3000 lb, 50 lb, 500 lb, 5000 lb, 750 lb
